Pool Verification

Apologies in advance... this ain't pretty.

Advances in the Solidity language have made it much more expressive, especially in terms of natively supported data structures. However, these features wreak havoc on tooling designed for simpler times: notably Etherscan contract interfaces and code verification.

Vendors have responded by improving support for this, vs earlier methods that relied on things like flattened files. Greater size and complexity have made these increasingly harder to produce: the solidity compiler handles circular references - but not most flattening tools.

Hardhat to the rescue - sort of. The hardhat verification plugin works well: but again, the devil's in the details. It is very hard to get the arguments exactly right for complex contracts. Here are instructions for how to verify your new V2 Balancer pool on Etherscan.

Prerequisites

Theoretically you can compute the arguments from JSON using various tools, but the most reliable method is to read the arguments right off the blockchain. They're immutable, and guaranteed to be correct. To perform this most kludgy portion of the verification process, you will need a Tenderly account. You can use the free version, and the easiest way to log in is through GitHub. Developers likely already have a GitHub account - if you don't, that's also free.

You also need to issue the verification command to Etherscan, over a public network, wherever the contract is deployed: e.g., mainnet, Kovan, Polygon. If you're not running your own node, this is most commonly achieved through Infura or Alchemy. You will need to provide an API key from one of these services in your hardhat network configuration. And since you are submitting a request to Etherscan, you also need an Etherscan API key. (Note that this also works for PolygonScan, but you will need a separate account and API key for Polygon.)

Verification requires correct build artifacts (e.g., ABI code), and other infrastructure we've built into the repository, so you'll need to clone the monorepo, and issue the command from there.

Process

Once you've cloned the monorepo, cd to pkg/deployments (not /deployments). You will need to add your network configuration to pkg/deployments/hardhat.config.ts.

Here is one way you might do it for mainnet, using Infura, and an account mnemonic. You could also use Alchemy, a private key, etc. See the hardhat docs here. In this example, you would set the environment variables INFURA_KEY and MNEMONIC.

Needless to say, never put a real key in a file - even for a free account - especially if it might get committed to source control!

mocha: {
timeout: 40000,
},
networks: {
mainnet: {
url: https://mainnet.infura.io/v3/${process.env.INFURA_KEY},
accounts: {
mnemonic: process.env.MNEMONIC,
},
},
},
},

Here is the command you will execute in the /pkg/deployments directory:

npx hardhat verify-contract
--id <task-id>
--name <contract-name>
--address <address>
--network <network>
--key <etherscan-api-key>
--args <abi-encoded-constructor-arguments>

As a concrete example, let's say we're verifying this Mainnet Oracle pool (click to follow the link):

If we're verifying an oracle pool, the contract name is WeightedPool2Tokens. This particular pool was deployed at 0xe2469f47ab58cf9cf59f9822e3c5de4950a41c49 (the first part of the poolId) on mainnet. That (plus the Etherscan API key) takes care of all the "middle" arguments. What about --id and --args? Those need a bit more explanation.

The hardhat deployment plugin is organized around "tasks." Each tasks corresponds to the deployment of one or more contracts. The "id" here is the name of the task where the relevant contract was deployed. Here's the list for the currently deployed Balancer pools. (Note that names are case-sensitive.)

Task ID (--id argument)

Contract name(s) (--name argument)

20210418-weighted-pool

WeightedPool, WeightedPool2Tokens

20210624-stable-pool

StablePool

20210721-liquidity-bootstrapping-pool

LiquidityBootstrappingPool

20210727-meta-stable-pool

MetaStablePool

20210907-investment-pool

InvestmentPool

So far then, our command is:

npx hardhat verify-contract
--id 20210418-weighted-pool
--name WeightedPool2Tokens
--address 0xe2469f47ab58cf9cf59f9822e3c5de4950a41c49
--network mainnet
--key <your-etherscan-api-key-here>
--args <abi-encoded-constructor-arguments>

Your Etherscan API key goes after --key. The tricky part is the last argument, and that's what makes verification so difficult: the constructor arguments.

We're going to pull them right off the blockchain, so the first thing we need to do is find the transaction where the contract was deployed.

To do this, we want to navigate to the "Internal Transactions" tab on Etherscan's entry for this address. The first (and likely only) transaction here will be the one that deployed the pool: https://etherscan.io/address/0xe2469f47ab58cf9cf59f9822e3c5de4950a41c49#internaltx

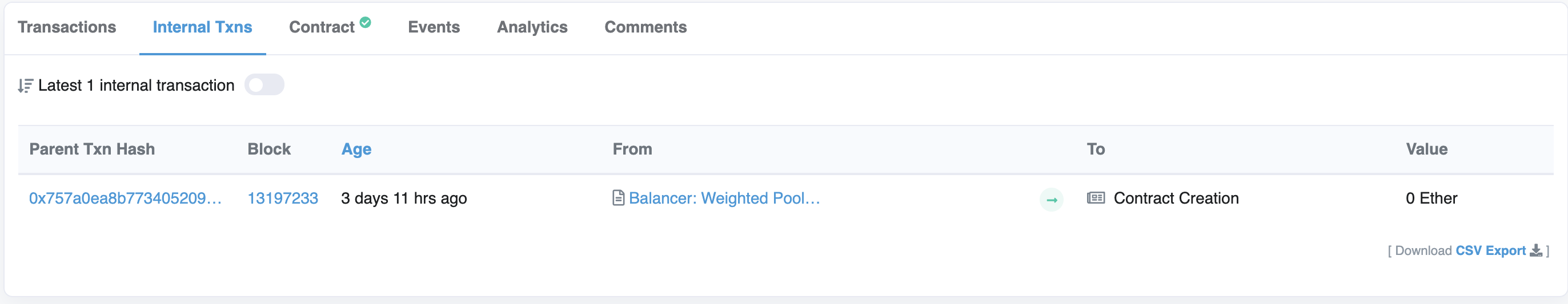

Finding the pool deployment transaction

Click on the "Parent Txn Hash" link to find the transaction hash: it is 0x757a0ea8b773405209eb67258504c083b3c11d5a43ea437d77ab17ac982a1c2b.

We will now use the Tenderly Debugger to find the encoded constructor arguments. Log into Tenderly and copy the hash into the search bar.

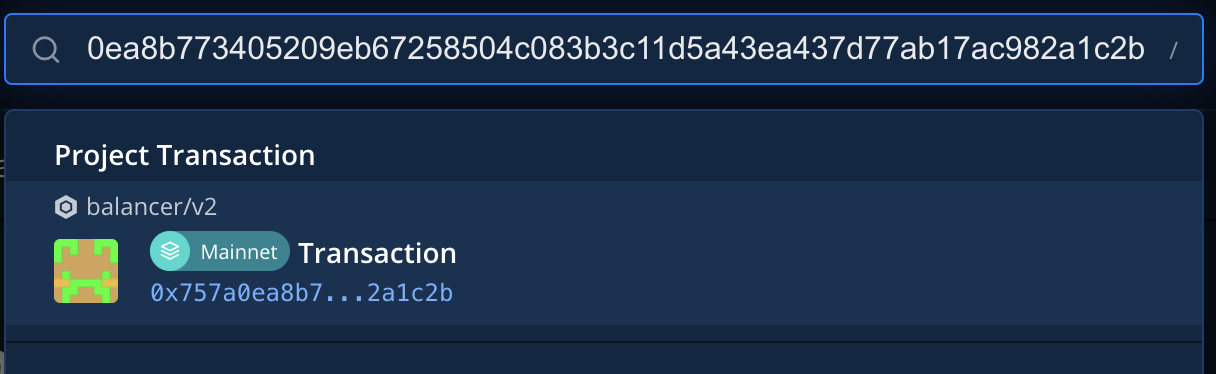

Find the transaction in Tenderly

You will see the details of the create() transaction

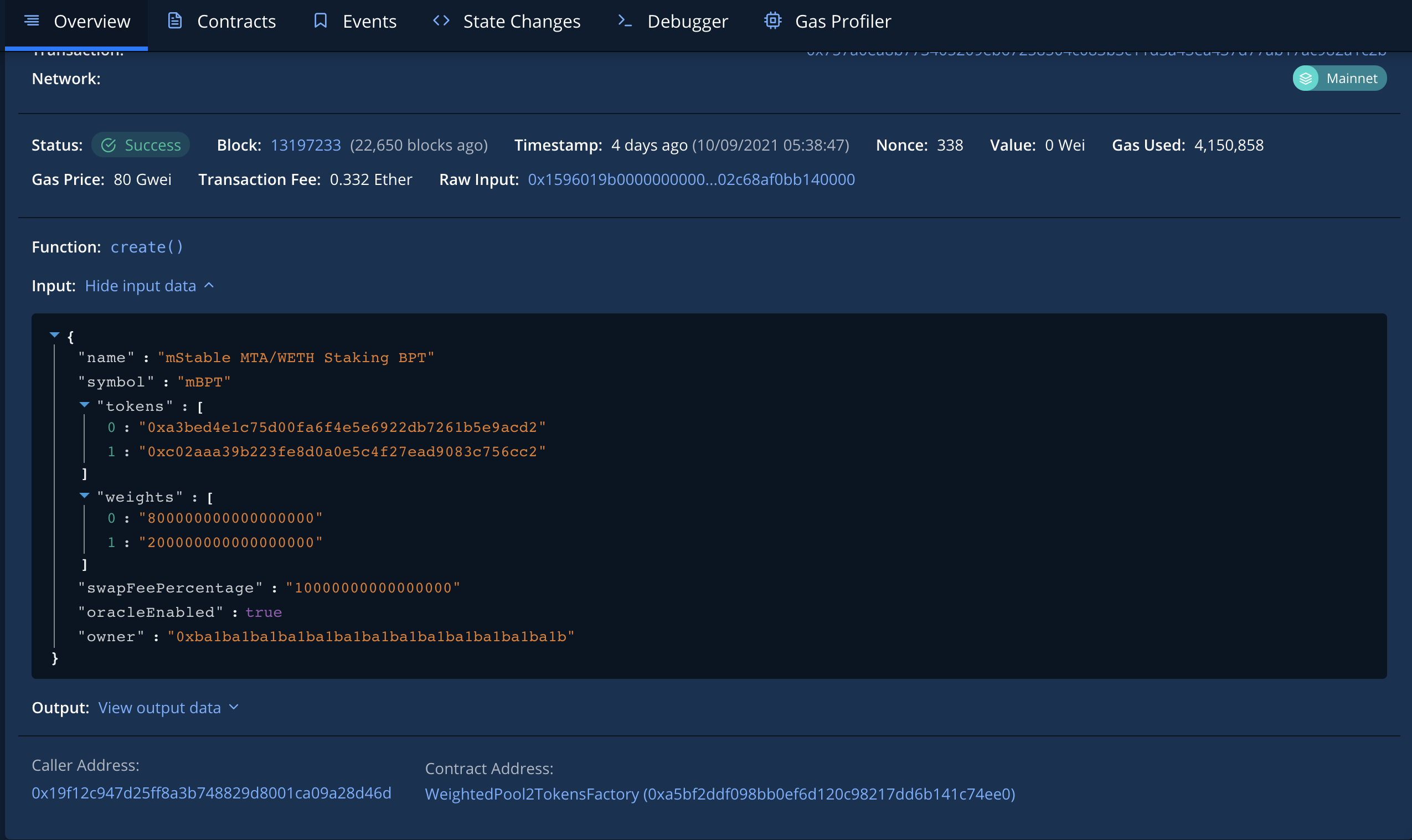

create() transaction detail

If you like, you can expand the input data tab for a human-readable representation:

Human-readable input

However, what we need is the encoded version. To get that, scroll down into the call tree and click on the [CREATE] line:

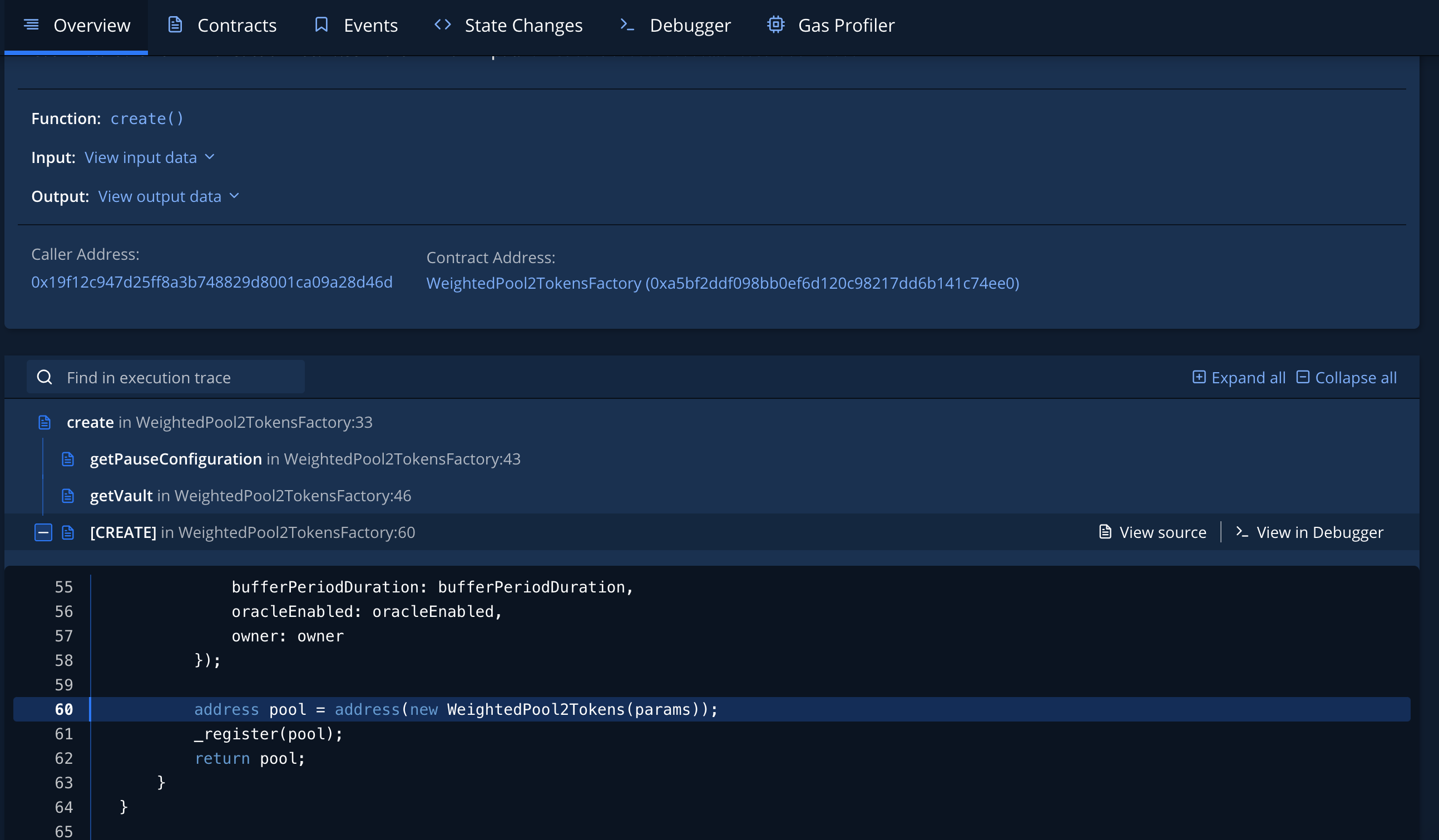

Source code for the create() operation

Now click "View in Debugger":

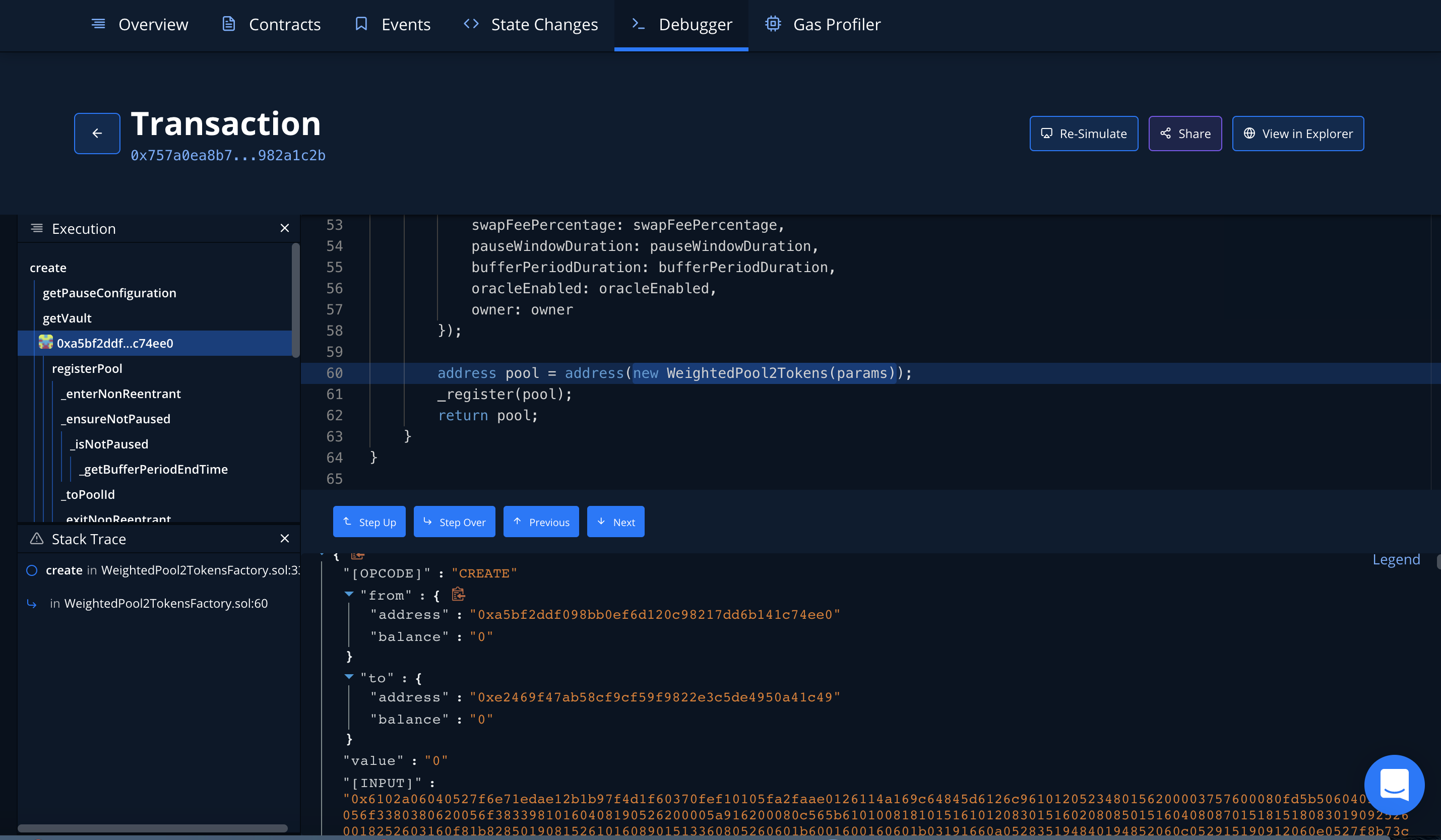

Debugger view

The code we want is in the "[INPUT]" section. See that giant block of bytecode? We need to find the constructor arguments in all that. Luckily, there's an easy way to do it.

We know the first argument to a Balancer factory create is the Vault, and that the constructor arguments are at the end of the input data. So if we find the last occurrence of "<Vault address>," we know the constructor arguments are everything from that point on.

They are sometimes preceeded by the code "0033," but not always. So, search for this string:

0000000000000000000000000000000000000000000000000000000000000020000000000000000000000000ba12222222228d8ba445958a75a0704d566bf2c8

The encoded constructor arguments are then everything from the Vault address on:

0000000000000000000000000000000000000000000000000000000000000020000000000000000000000000ba12222222228d8ba445958a75a0704d566bf2c8000000000000000000000000000000000000000000000000000000000000018000000000000000000000000000000000000000000000000000000000000001c0000000000000000000000000a3bed4e1c75d00fa6f4e5e6922db7261b5e9acd2000000000000000000000000c02aaa39b223fe8d0a0e5c4f27ead9083c756cc20000000000000000000000000000000000000000000000000b1a2bc2ec50000000000000000000000000000000000000000000000000000002c68af0bb140000000000000000000000000000000000000000000000000000002386f26fc10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000001000000000000000000000000ba1ba1ba1ba1ba1ba1ba1ba1ba1ba1ba1ba1ba1b000000000000000000000000000000000000000000000000000000000000001c6d537461626c65204d54412f57455448205374616b696e67204250540000000000000000000000000000000000000000000000000000000000000000000000046d42505400000000000000000000000000000000000000000000000000000000

So the final command is:

npx hardhat verify-contract
--id 20210418-weighted-pool
--name WeightedPool2Tokens
--address 0xe2469f47ab58cf9cf59f9822e3c5de4950a41c49
--network mainnet
--key <your-etherscan-api-key-here>
--args <0000...giant string above...0000>
